RV-966 Vertical Machining

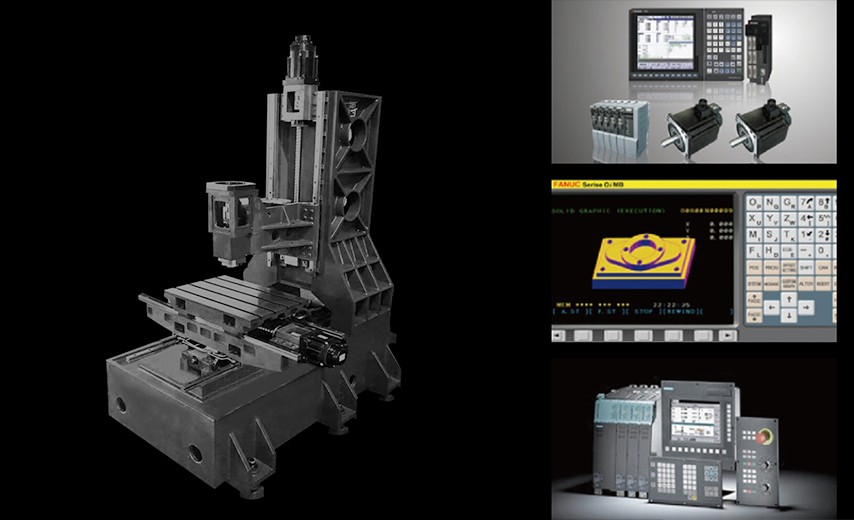

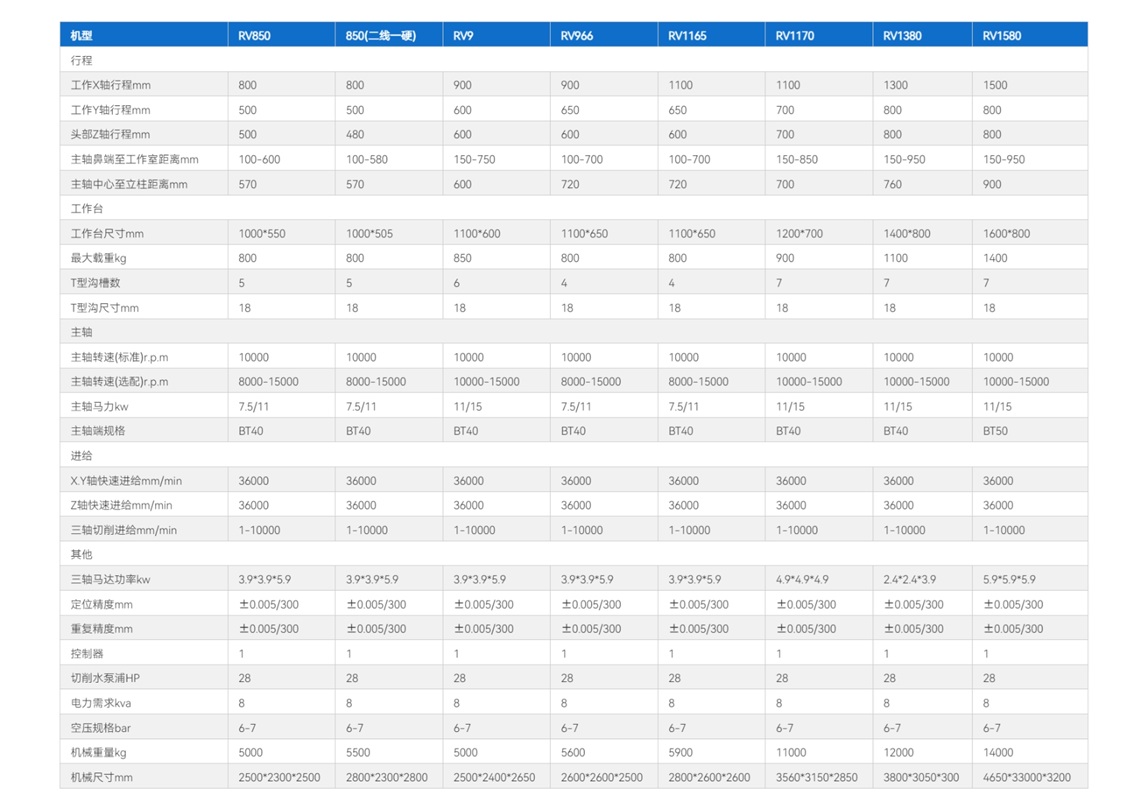

RV-966 Vertical Machining Center (Three-Line Rail) The RV-966 Vertical Machining Center is a high-performance machining solution equipped with mature CNC systems like Syntec, Mitsubishi, and FANUC. Featuring three-axis linear guideways, it achieves a rapid traverse speed of 36m/min, ensuring precise positioning and heavy-load support. The BT40-24T disc-type tool magazine enables tool changes in just 1.8 seconds, significantly reducing non-processing time. With a spindle speed ranging from 8000 to 12000rpm (10000rpm standard, 8000-15000rpm optional) and 7.5/11kW power, its rigid short-nose spindle enhances efficiency and minimizes tool wear. The machine boasts X/Y/Z travels of 900/650/600mm, a 1100×650mm worktable with 800kg maximum load, and ±0.005/300mm positioning and repeat accuracy. Its robust structure—wide base, box-type column, and extended saddle—ensures stability during high-speed machining. The rear chip removal design facilitates easy debris cleaning and prevents oil leakage. Optional electrostatic oil mist purifier and Z-axis brake without counterweight further optimize performance, making it ideal for efficient, precise manufacturing tasks.
