RV-1165 Vertical

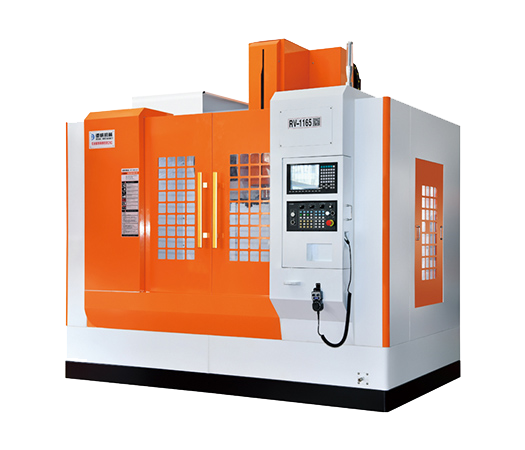

ROWE RV-1165 Vertical Machining Center (Three Linear Rails) The ROWE RV-1165 Vertical Machining Center is a high-performance precision tool engineered for efficient and stable machining, ideal for automotive, electronics, and mold manufacturing industries. Adopting mature CNC systems from leading brands like FANUC, Mitsubishi, and Syntec, it ensures reliable operation and precise control. Equipped with three-axis linear rails, the machine achieves a fast traverse speed of 36m/min, supporting heavy loads while maintaining exceptional positioning accuracy (±0.005mm/300mm) and repeatability. Its BT40-24T disc-type tool magazine enables quick tool changes in just 1.8 seconds, significantly reducing non-processing time. The robust structure—featuring a wide, stable base, box-type column, and extended saddle—ensures stability during high-speed cutting, while the rear chip removal design facilitates easy waste cleaning and prevents oil leakage. With a standard spindle speed of 10,000rpm (optional 8,000-15,000rpm) and 7.5/11kW power, it handles diverse materials with ease. Optional electrostatic oil mist purifiers enhance environmental friendliness. The Z-axis brake and counterweight-free design deliver vibration-free high-speed movement, making it a top choice for high-precision, high-efficiency machining tasks.
