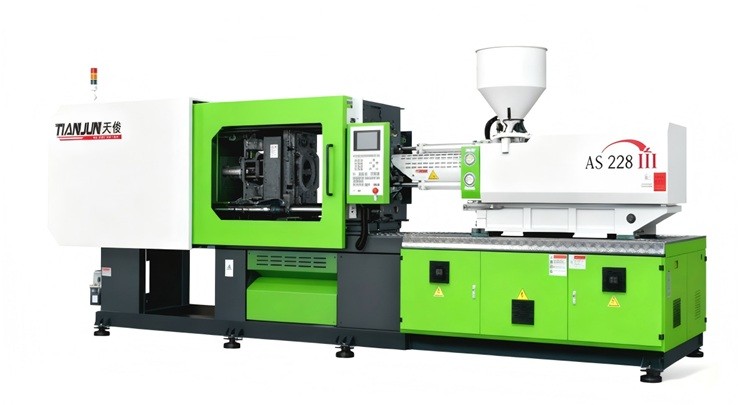

injection molding machine

CLAMPING UNIT

TECHNICAL CHARACTERISTICS

· Being optimized by finite element analysis,the even stress distribution on the platen minimizes the chance of deformation while can prolong its life time also.

· Parameters optimization design of connecting rod structure, guarantee run fast and smooth, small hedge-click

· Oversized ties bar margins, may mold thickness and mould opening stroke can carrying larger molds

· Use quantitative distribution of lubrication systems, lubrication of high pressure, high reliability

· Hydraulic motor drive gear adjusting, mould adjusting quickly and accurately.

· Low pressure mold protection function. Multiple ejector mode optional. High precision control of clamping and ejector position

STANDARD FEATURES

· Integral casting high intensity platen and toggle

· Mechanical and electric dual protection device

· Mold cooling water dispenser

· Floor place reserved for robot installation

· Code template hole template

OPTIonAL FEATURES

· Increase mold thickness

· Hydraulic core pul

· Rotate drawing

· Air ejector

· Hydraulic or electric daylight adjustment

· Mold Opening mechanical limit stop

· Mold hang up device

· Widening of safety door

· Automatic safety door

· T-slot mold platen

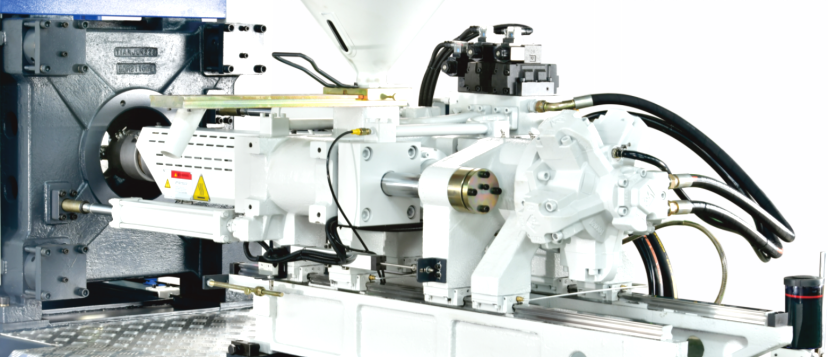

INJECTION UNIT

TECHNICAL CHARACTERISTICS

· Alloy steels nitrided screw and wear resistance of nozzle's pieces achievable quality of high performance plasticizing.

· Adopted with integral casting unit base, reinforced the rigidity of the injection unit, injection work more smoothly.

· Modular screw barrel design, replacing different components quickly and easily.

· Adopted with mobile hopper replacing raw materials quickly and easily.

· Nozzle temperature control can be selected pid or percentages, easy operations.

· Six- stage injection , Five-stage holding pressure and three-stage plasticizing control to meet different product requirements

· Precise material temperature control to ensure quality

· A variety of specially designed screw component options

STANDARD FEATURES

· Alloy steel material nitride screw set

· Mono cylinder movement injection device

· Mobile hopper unit device

· Nozzle micro manipulator

· Cylinder's heat insulation cover

· Nozzle protective cover

OPTIonAL FEATURES

· Increase injection weight

· Extended nozzle

· Enlarge or reduce hydraulic motor power

· Bi- metallic screw and barre

· Spring type self-lock nozzle

· Hard chrome plated screw component

· Special use screw components

· Numeric control of plasticizing and back pressure.
